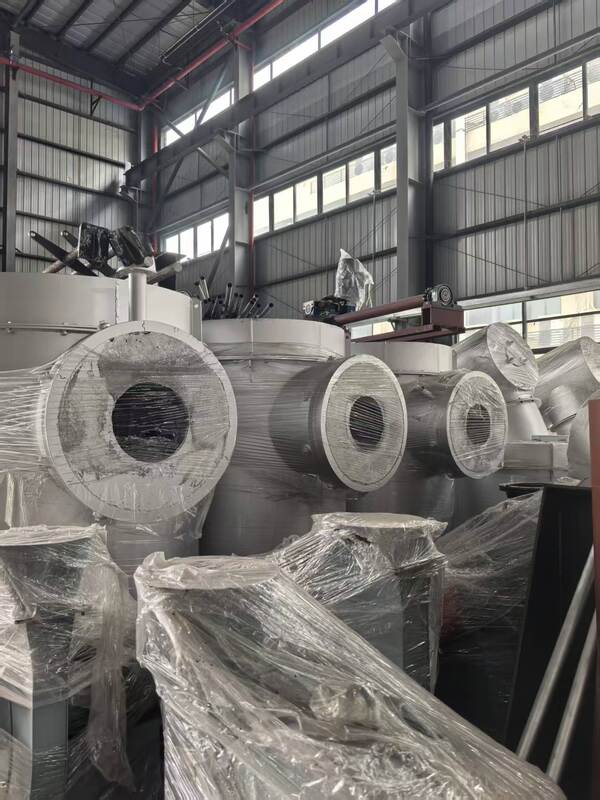

Natural Gas and Heavy Oil Double Purpose Burner for Aluminum Melting Furnace

Brand Name:	Bolv
Model Number:	20T
MOQ:	1 set
Price:	USD 20,000
Packaging Details:	Standard export packaging (carbon box, pallet, film)

Detail Information

Product Description

Detail Information

Place of Origin:

China

Fuel:

Heavy Oil, Diesel, Coal Tar, Liquefied Petroleum Gas, Natural Gas

Applicable Furnace Tonnage:

5-60 Tons

Exhaust Gas Temperature:

<150℃

Aluminum Melting Speed:

2-4 Tons/hour

Energy Consumption:

25-65 Kg/ton Of Aluminum

Control:

PLC

Application:

Aluminum Ingot Or/ And Billet Casting, Aluminum Liquid Transfer

Supply Ability:

100 sets/ year

Highlight:

Natural gas aluminum melting furnace burner

Heavy oil melting furnace burner

Dual purpose regenerative burner system

Product Description

Natural Gas and Heavy Oil Double Purpose Burner for Aluminum Melting Furnace

Product Overview

The regenerative combustion system adopts PLC fully automatic control mode. Equipped with a multi-color human-machine touch display screen, the system can digitally and intuitively show real-time data including aluminum material temperature, internal furnace temperature and exhaust air temperature of the regenerative chamber.

Key Performance Specifications

Parameter	Specification
Exhaust Flue Gas Temperature	Controlled below 200℃
Flue Gas Discharge	Less than 10% of total volume via pressure regulating bypass flue
Final Exhaust Gas Temperature	Kept under 250℃
Primary Fuel	Natural gas for ignition and combustion
Compressed Air Pressure	4kg/cm² to 6kg/cm²
Air Consumption Rate	35 cubic meters per minute
Power Input	380V AC, 50Hz

Maintenance & Operational Guidelines

Daily Inspection Core Items

System temperature and furnace internal pressure
Gas supply pressure and real-time combustion condition
Furnace lining structure and overall sealing performance
Exhaust system operating status
Cooling water circulation system

Routine Maintenance Cycle Standards

Daily Maintenance

Remove slag and dirt accumulated at the furnace mouth and flow channel
Conduct visual and functional inspection of burners, ignition devices and all sealing parts

Weekly Maintenance

Calibrate and verify the accuracy of thermocouples and temperature control instruments
Clean scale and impurities in the crystallizer water gap
Check the structural integrity of filter plates

Monthly Maintenance

Carry out full inspection on furnace lining thickness and surface cracks
Calibrate the matching accuracy of casting speed and traction synchronization system
Replace aging, deformed and failed sealing rings and gaskets

Annual Maintenance

Complete comprehensive furnace body overhaul, including furnace lining repair and refractory relining
Conduct full inspection, debugging and maintenance for casting mechanical equipment and electrical control systems

Operational Safety Specifications

High-temperature Injury Prevention

On-site staff must wear high-temperature resistant work clothes, protective masks and heat insulation gloves during operation to effectively avoid high-temperature scalds and burns.

Explosion Prevention Measures

The gas-fired furnace is strictly forbidden to have gas leakage, and regular gas tightness detection must be implemented. It is prohibited to put any wet materials into the furnace to prevent explosion accidents caused by the reaction between moisture and high-temperature aluminum liquid.

Emergency Disposal Requirements

The operation site must be equipped with standard dry powder fire extinguishers and dry sand for emergency fire fighting and accident disposal.
