Natural Gas Homogenizing Furnace 15 Ton Furnace Before Extrusion

15 tons natural gas homogenizing furnace before extrusion

Product introduction

Furnace form: natural gas homogenizing furnace

Aluminum log length: 6000mm

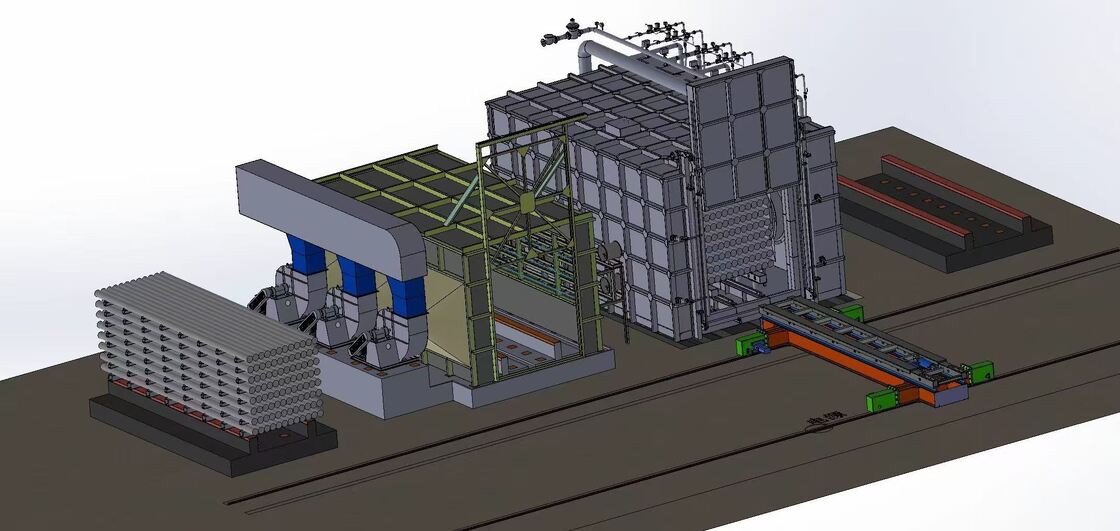

The homogenizing furnace group includes: 1 set of homogenizing furnace, 1 set of cooling chamber, 1 set of compound trolley.

Quantity: One set, combustion system: Natural gas burner, air/ natural gas valve, air flow control valve, main solenoid, switch, flame detector.

Quantity: One set, Pressure regulating system: Natural gas filter, solenoid valve, regulator valve.

Quantity: One set, auxiliary system: Combustion fan, high pressure fan, ignition gas gun, air duct, pressure gauge.

Quantity: Six pieces. thermocouples for temperature measurement.

Quantity: Three sets. Stainless steel high temperature circulation fan,  V-belt and pulley.

Quantity: One set, furnace door and sealing, lifting system: Steel furnace door, lifting motor, lifting mechanism, temperature resistant lining, furnace door guide device, cylinder, gas flow valve, gas directional valve, sealed refractory material.

Quantity: One set, furnace body steel structure, inner layer stainless steel, interlayer and bottom refractory material.

Quantity: One set, including steel rails in the furnace, refractory materials for the furnace material table and bottom.

Quantity: One set, waste heat utilization device (heat pipe heat exchanger), smoke exhaust chimney, chimney to furnace exhaust outlet connection.

Quantity: One set, including cables and control wires from the control cabinet to the furnace.

Quantity: One set, including cables from the power supply to the control cabinet and compressed air pipes from the compressed air source to the furnace.

Quantity: One set, furnace civil engineering, foundation bolts.

Quantity: One set, furnace civil foundation condition diagram.

Quantity: One set of natural gas pipelines, pressure regulators, flow meters, and valves that meet combustion conditions are connected to the front of the furnace.

Quantity: 2 sets, aluminum rod support frame, wrapped with stainless steel edges.

Quantity: One set, circuit control system:

380V voltage motor control part: 3 sets of 37kw circulating fan starters, 1 set of 18.5kw combustion fan starter, 1 set of 3kw furnace door lifting motor controller, and 1 set of 380V/220V transformer for control.

220V voltage control part: burner flame device, PLC temperature control, touch screen.

All the above appliances are installed inside the electrical cabinet to form a control system, including buttons, indicator lights, switches, alarms, replies, etc.

FAQ

How to reduce the loss of profile molds and save production costs in homogenization furnaces?

After homogenization, the plasticity of the aluminum rod is improved, the internal hard points are reduced, the friction and impact of the extrusion process on the mold are reduced, the service life of the mold is extended, frequent mold repair and replacement downtime is reduced, and the cost of mold consumables and manual maintenance is reduced.
