15 Tons Homogenizing Furnace PLC Controlled Natural Gas Furnaces

Brand Name:	Bolv
Model Number:	15t
MOQ:	1 set
Price:	USD 150,000
Packaging Details:	Standard export packaging (carbon box, pallet, film)

Detail Information

Product Description

Detail Information

Place of Origin:

China

Name:

Homogenizing Furnace

Rated Capacity:

15 Tons

Daily Output:

30~40 Tons/day

Maximum Working Temperature:

610℃

Total Circulating Fans:

3 Units

Average Cooling Time:

Around 2 Hours

Core Control System:

Famous Brand PLC

Supply Ability:

15 sets/ year

Highlight:

15 Tons Homogenizing Furnace

PLC Controlled Natural Gas Furnaces

15 Tons Natural Gas Furnaces

Product Description

Natural gas fuel aluminum billet homogenizing furnace 15tons

Product introduction

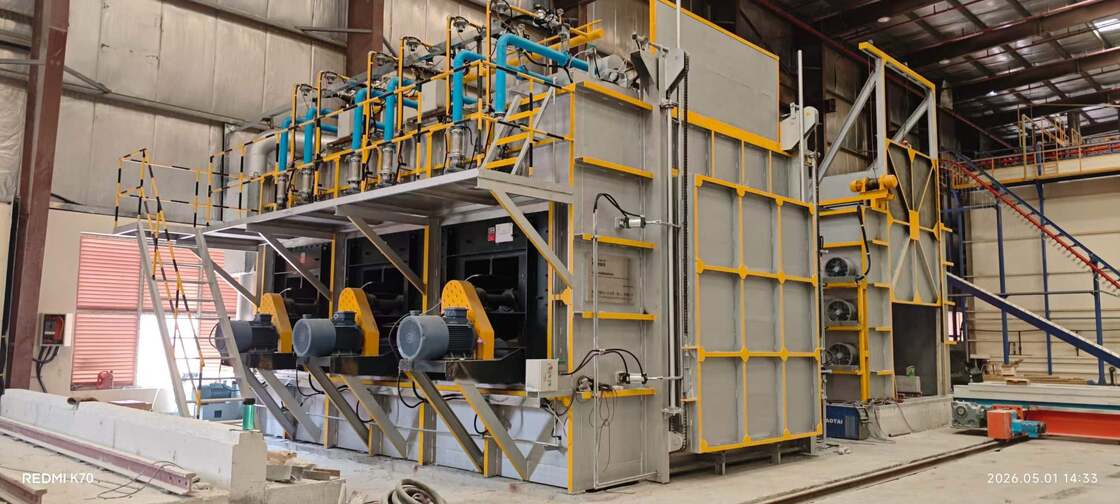

This 15-ton natural gas homogenizing system is custom-built for the homogenization heat treatment of long aluminum billets up to 6500mm in length. The whole production unit is composed of a main heating furnace, dedicated cooling chamber and 3D transfer trolley. All devices work together to form a fully automatic cyclic production line for aluminum material processing.

The main furnace is divided into three separate temperature control areas and equipped with six gas combustion nozzles. Three high-performance circulating fans are installed inside, each with an air flow exceeding 30 cubic meters per second, which can create even heat distribution across the entire furnace chamber. The device supports a maximum operating temperature of 610℃, and the temperature control error is kept within ±5℃. It generally takes 3 to 5 hours for aluminum billets to reach the required homogenization temperature. Using natural gas with a calorific value of 8400 kcal per cubic meter as fuel, the equipment features low fuel consumption at around 30 cubic meters per ton of aluminum. Its daily processing capacity is between 30 and 40 tons.

The supporting cooling unit is fitted with 27 cooling fans. It can deliver a cooling speed of no less than 300℃ per hour, and the whole cooling procedure can be finished in roughly two hours, fully complying with professional metallurgical cooling standards. The 3D transport vehicle has a rated load of over 15 tons and a maximum travel distance of more than 8000mm. Both the main and auxiliary trolleys travel at a speed of 7.5 meters per minute. The hybrid hydraulic and electric driving structure guarantees stable material delivery during operation.

The whole production line adopts automatic control system with programmable logic controller as the core. The power supply adopts conventional 380V three-phase electricity and 220V single-phase electricity. Featuring stable running status, high working efficiency and low energy loss, this integrated furnace system is a practical choice for medium-sized aluminum billet homogenization production projects.

FAQ

How to choose between electric heating homogenization furnace and gas-fired homogenization furnace, and what are the advantages and disadvantages of their respective operations?

1. Electric heating homogenization furnace: temperature control accuracy ± 3 ℃, no exhaust gas emissions, no need to lay gas pipelines, low environmental impact assessment threshold for the factory building; The disadvantage is that the cost of electricity consumption per ton is high, and the heating rate of large capacity furnaces is slow, which is suitable for small-scale production capacity, strict environmental control in industrial parks, and factories without natural gas supporting facilities.

2. Gas homogenization furnace: fast heating speed, low unit heat treatment energy consumption cost, suitable for large-scale continuous production; The disadvantages are the need for supporting gas pipelines, regular exhaust gas testing, daily maintenance of burners, and compliance with gas explosion-proof regulations in the factory building.
