High Temperature Homogenizing Furnace 30 Tons Aluminium Billet Heating Furnace

Brand Name:	Bolv
MOQ:	1 set
Price:	USD 150,000
Packaging Details:	Standard export packaging (carbon box, pallet, film)

Detail Information

Product Description

Detail Information

Place of Origin:

China

Name:

Homogenizing Furnace

Applicable Fuels:

Natural Gas, Liquefied Petroleum Gas, Diesel, Electric

Tonnage:

10-100 Tons

Furnace Type:

Hot Air Circulation Box Type Natural Gas Equalization Furnace

Application:

Aluminum Billets For Extrusion/ Precise Machining

Capacity:

2-3 Cycles/day

Aluminum Billet Size:

6000mm. φ90-406mm

Supply Ability:

15 sets/ year

Highlight:

High Temperature Homogenizing Furnace

Homogenizing Furnace 30 Tons

30 Tons Aluminium Billet Heating Furnace

Product Description

Aluminum billet homogenizing furnace 30tons

Product introduction

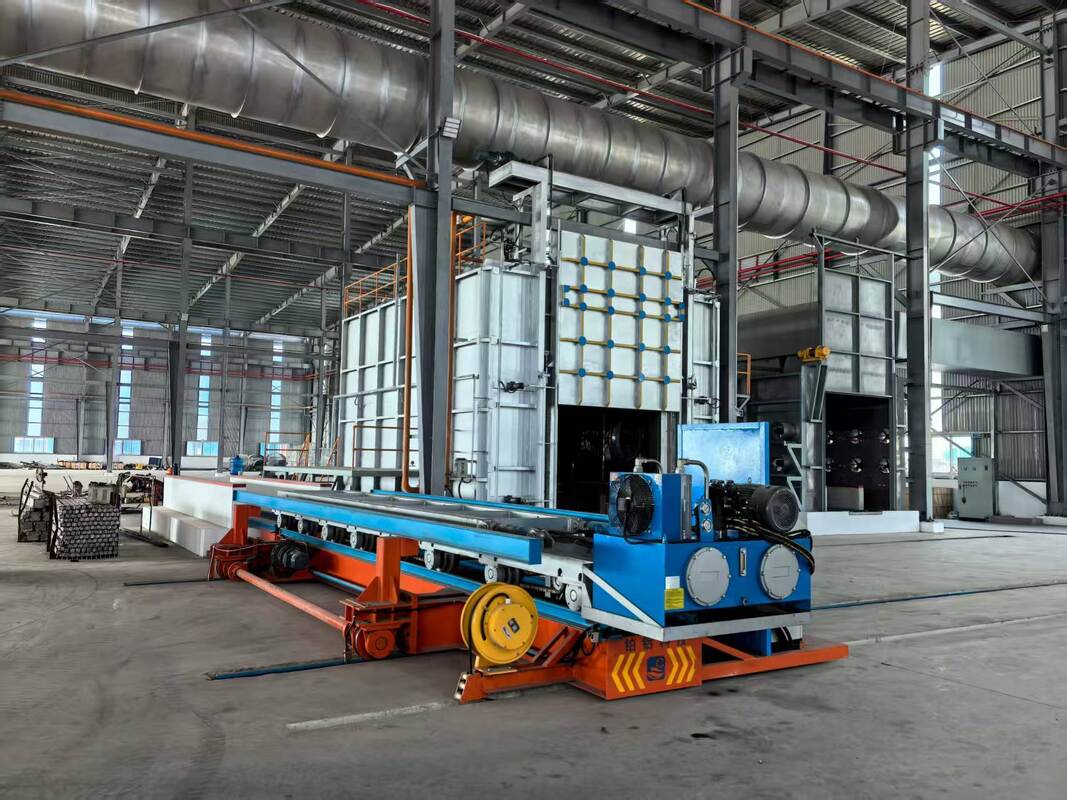

This homogenizing furnace serves to refine grain structure of aluminum ingots and remove residual internal stresses generated during casting. Equipped with high-temperature axial circulation fans and low-NOx gas burners, the unit fully satisfies the fast heating demands of mass aluminum processing. Its independent cooling station is fitted with multiple high-airflow axial fans paired with a water mist cooling system, delivering outstanding rapid cooling performance.

Once aluminum cast ingots are cut by sawing equipment, operators place them onto special stacking frames on the feeding platform, with supporting spacers separating every layer of billets. After finishing material loading, the 3D transport trolley activates to hoist the full stack of frames and workpieces. The furnace gate then opens automatically, and the loaded trolley moves along built-in rails into the furnace cavity. The integrated hydraulic mechanism lowers the material frames steadily, after which the trolley withdraws along the rails. The furnace door shuts tightly, and the heating procedure initiates immediately. The entire homogenization cycle runs under fully automatic control following customized thermal treatment recipes.

Upon completion of constant-temperature soaking, the furnace door unlocks again. The 3D transfer trolley rolls back into the furnace along the tracks, and its hydraulic unit lifts the stacked frames holding aluminum billets. The trolley then pulls all materials out of the heating chamber and shifts to the cooling compartment before entering it. High-capacity axial fans installed on both sides of the cooling station swiftly dissipate heat from the aluminum stock. A supplementary water mist cooling function can be activated concurrently for faster heat removal if required. This cooling setup can bring the billet surface temperature down to approximately 50 degrees Celsius.

FAQ

What are the core benefits of homogenization furnace treatment for aluminum bars in subsequent extrusion production?

By eliminating dendrite segregation and solute enrichment inside the cast rod through high-temperature homogenization, the overall hardness and plasticity of the aluminum rod are uniform and stable, the extrusion resistance is lower, the discharge speed is increased, and the problems of mold blockage and intermittent discharge are greatly reduced, thereby improving the overall production capacity of the extruder.
