15 Ton Aluminum Melting Furnace Natural Gas / Heavy Oil Aluminium Furnace Machine

Brand Name:	Bolv
Model Number:	20T
MOQ:	1 set
Price:	USD 120,000
Packaging Details:	Standard export packaging (carbon box, pallet, film)
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Name:

Aluminum Melting Furnace

Tonnage:

20T

Maximum Scrap Loading:

22T

Burner Type:

Regenerative Burner

Fuel:

Natural Gas 8400kcal/m³

Melting Period Fuelconsumption:

65 M³ /ton Of Aluminum (continuous Working To Melt The Scrap To 710℃

Maximum Natrual Gas Consumption:

Maximum 350N M³/hour (quick Melting Period)

Burner Load Adjustment:

PLC Adjustment

Scrap Type:

Loose Or Baled Aluminum Scrap, UBC, Automobile Engine

Supply Ability:

20 sets/ year

Highlight:

15 Ton Aluminum Melting Furnace

Natural Gas Aluminium Furnace Machine

Heavy Oil Aluminium Furnace Machine

Product Description

Natural gas or heavy oil aluminum melting furnace 15tons

Product introduction

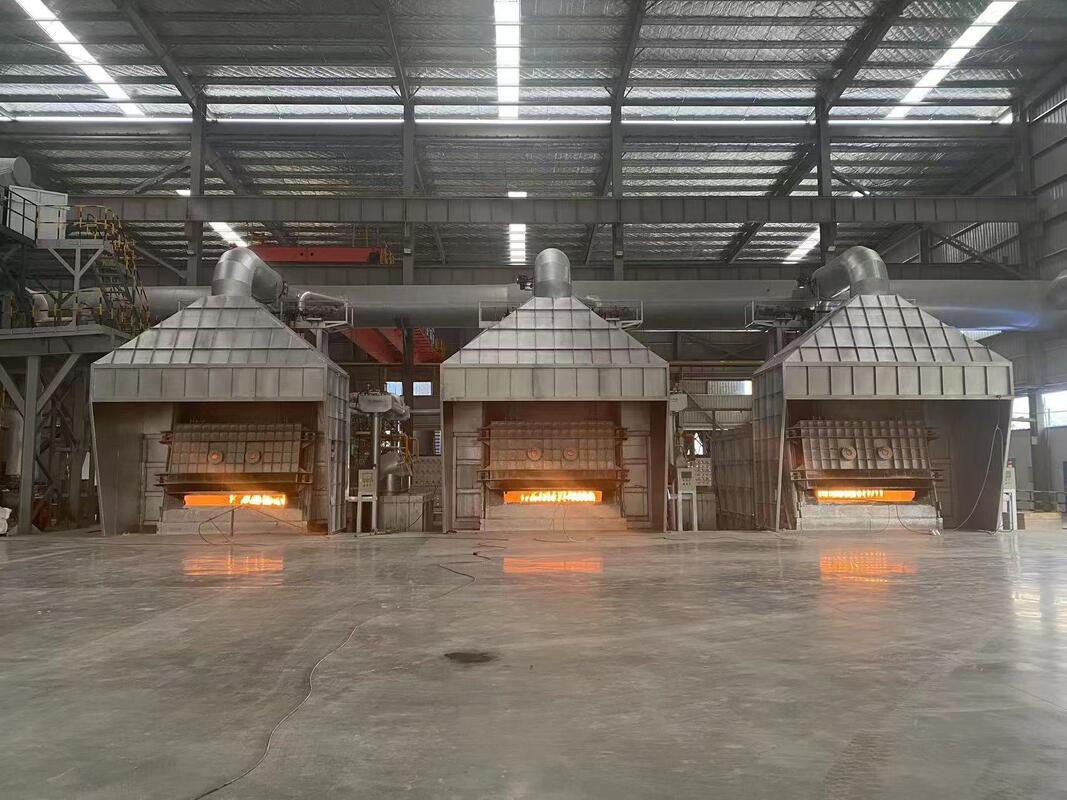

This 15-ton melting unit acts as the key frontline equipment to supply qualified molten aluminum for downstream casting machines. Prior to charging, raw aluminum ingots and recycled aluminum scraps are blended in a predefined proportion. The compound materials are then delivered and loaded into the furnace by forklifts or manual work.

Once feeding work is finished, operators activate the regenerative heating system to melt the mixed raw materials. During the melting cycle, staff carry out dross removal and material homogenization around the furnace outlet. When the molten alloy rises to the preliminary working temperature, on-site personnel conduct basic component adjustment and secondary slag cleaning. Meanwhile, they fine-tune the liquid temperature to meet primary production standards.

After further heating to the target value, the molten metal goes through a series of rigorous procedures, including precise ingredient calibration, complete dross elimination and deep alloy refining. The integrated combustion system works continuously to stabilize the temperature of molten aluminum within the required range.

Only the molten alloy that fully complies with all technical specifications can be transferred to the subsequent casting procedures for mass production.

Parameters

Furnace Construction	Stationary rectangular heating furnace
Molten aluminum working temperature scope	720℃—760℃
Max allowable temperature inside furnace cavity	1050℃—1100℃
Inclination angle of the base connecting furnace door	30º
Liquid aluminum discharge mode	Manually operated draining outlet
Number of draining tap	1
Inner diameter of tapping port	Φ60
Number of burner	2
Burner specification	Heat regenerative combustion device
Combustion medium	Pipeline natural gas
Fuel pressure	0.15-0.2Mpa (Manufacturer’s pipe network pressure)
Fuel heat value	8400Kpa / m3
Maximum capacity of burner	300 –400m3/ h
Burner’s ignition	Electric spark ignites natural gas pilot burner
Flame safety protection	Automatic detection of pilot burner’s ultraviolet detector

FAQ

What are the requirements for civil engineering foundation?

The foundation shall be poured with C30 concrete with a thickness of no less than 200mm. Reserve embedded parts and pipelines. Sufficient maintenance space shall be reserved around the furnace.
