Steel Wire Rope Winch Casting Machine Optimizes Heavy-Duty Production Processes

During aluminum billet casting, equipment must perform key operations including lifting, load handling, and tilting. Under high-temperature and heavy-duty production conditions, aluminum processing companies need to evaluate equipment structure, load capacity, control methods, and installation requirements when selecting casting equipment.

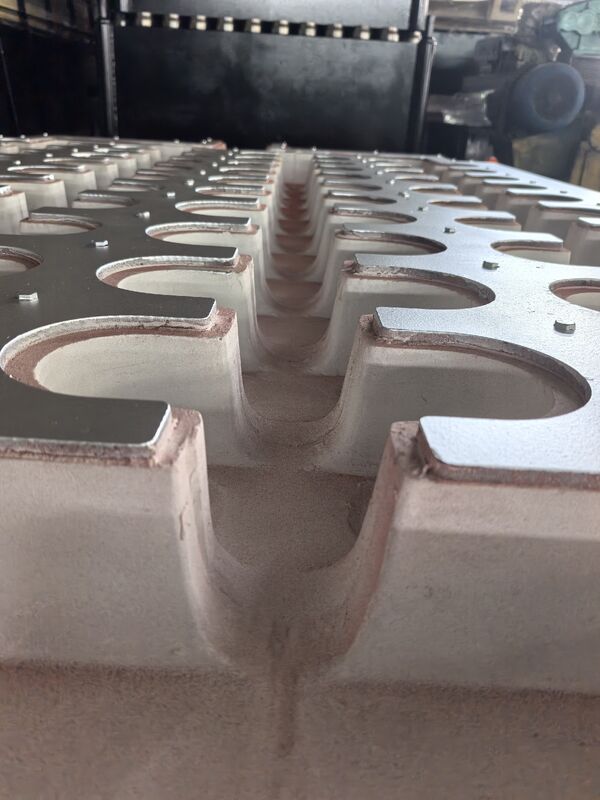

The 10 Ton Steel Wire Rope Winch Casting Machine is designed for aluminum billet casting production lines. It adopts a non-rail steel wire rope structure and consists of a winch mechanism, caisson, wellhead frame, tilting mechanism, hydraulic system, and electrical control system for lifting and tilting operations during aluminum casting processes.

With defined mechanical configurations and control functions, the machine provides a reference solution for aluminum billet manufacturers during equipment planning and production line matching.

The machine adopts a single drum with four steel wire ropes to perform lifting operations during the casting process.

The drum is manufactured from a Φ273mm seamless pipe with δ=20mm thickness and equipped with a Φ14mm lifting steel wire rope with an 80-meter length. The maximum load capacity reaches 10 tons under high water level conditions, while the winch stroke exceeds 6 meters, supporting different casting pit depths and lifting distances.

The wellhead frame is manufactured from 200×100×8 square tubes and 25mm steel plates. The system includes four main pulleys with a double-bearing structure using bearing model 6210.

These structural parameters provide reference points for production layout planning, foundation design, and installation preparation.

The above specifications are based on the uploaded "10T Casting Steel Wire Rope Winch Technical Proposal," covering the machine structure, lifting system, hydraulic configuration, and control system.

In addition to the lifting function, the machine is equipped with a hydraulic tilting mechanism. The hydraulic system includes hydraulic cylinders, pumps, and main hydraulic valve components to control the tilting operation.

The electrical control system supports PLC touchscreen operation or manual control. It consists of a main control unit, low-voltage electrical components, safety power supply devices, and a human-machine interface.

The system includes emergency manual lowering during power failure, alarm before completion, automatic stopping before reaching the designated position, and an anti-roll frame for casting rods. Electrical protection functions include overcurrent protection, short-circuit transient current protection, and motor overload protection.

For aluminum processing companies, casting equipment selection should consider production processes, installation space, and auxiliary facilities. The 10 Ton Steel Wire Rope Winch Casting Machine provides an equipment configuration reference through its 10-ton load design, long-stroke winch structure, hydraulic tilting system, and PLC control solution.

According to the technical proposal, the supply scope does not include civil works, foundation embedded parts, water pumps, water pipes, cooling towers, deep wells, aluminum iron boxes, and certain auxiliary casting facilities. Site planning should be completed according to actual project conditions before installation.
