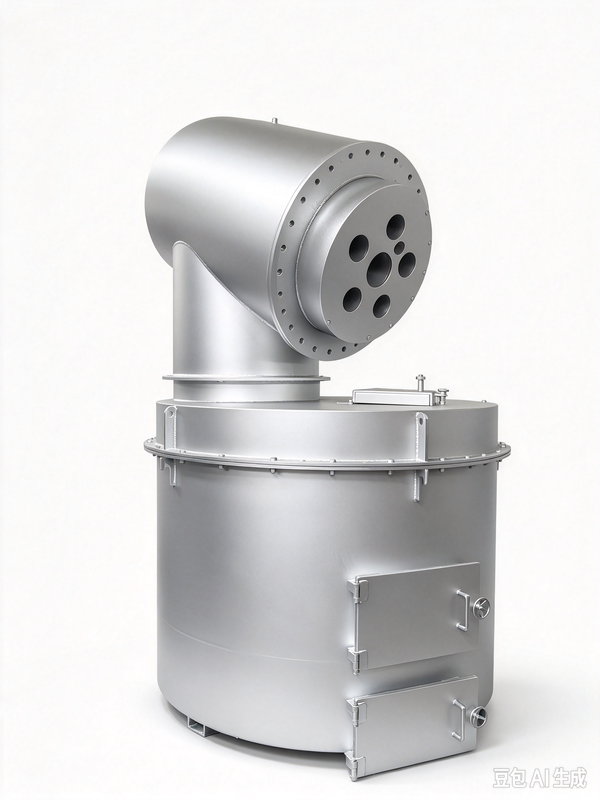

Aluminum Melting Furnace Combustion System Upgrade Solution | Regenerative Burner Technology and Parameters

Brand Name:	Bolv
Model Number:	20T
MOQ:	1 set
Price:	USD 20,000
Packaging Details:	Standard export packaging (carbon box, pallet, film)

Detail Information

Product Description

Detail Information

Place of Origin:

China

Name:

Regenerative Burner System

Fuel:

Heavy Oil, Diesel, Coal Tar, Liquefied Petroleum Gas, Natural Gas

Applicable Furnace Tonnage:

5-60 Tons

Exhaust Gas Temperature:

<150℃

Aluminum Melting Speed:

2-4 Tons/hour

Energy Consumption:

25-65 Kg/ton Of Aluminum

Control:

PLC

Application:

Aluminum Ingot Or/ And Billet Casting, Aluminum Liquid Transfer

Supply Ability:

100 sets/ year

Highlight:

aluminum melting furnace regenerative burner

regenerative burner combustion system

regenerative burner upgrade solution

Product Description

Aluminum Melting Furnace Combustion System Upgrade Solution

The Aluminum Melting Furnace Combustion System Upgrade Solution adopts Regenerative Burner Technology for high-temperature industrial furnace applications, including aluminum alloy melting, adjustment, and holding processes.

The system uses a dual fuel regenerative burner structure with heat storage units to recover exhaust heat and preheat combustion air. It supports both natural gas and fuel oil operation, making it suitable for aluminum processing plants, aluminum casting lines, and non-ferrous metal melting applications.

Regenerative Combustion Working Principle

The regenerative burner system operates with two burners working alternately. One burner performs combustion while the other burner stores exhaust heat through the regenerative unit. After switching, the stored heat is used to preheat combustion air and complete the heat recovery cycle.

This structure is designed for continuous aluminum melting furnace operation and can be combined with automatic control systems for combustion management.

Technical Specifications

Regenerative Burner Parameters

Item	Specification
Product Name	Regenerative Burner System for Aluminum Melting Furnace
Combustion Type	Dual Fuel Regenerative Combustion
Furnace Application	10T Aluminum Melting Furnace
Burner Quantity	2 Sets
Maximum Thermal Power	2000kW
Heat Storage Units	2 Sets
Storage Tank Capacity	0.5T / Unit
Heat Storage Material	Φ25/30 High Alumina Balls
Alumina Content	≥75%

Source: Technical specification section of the PDF.

Fuel and Operation Data

Item	Specification
Fuel Type	Natural Gas / Heavy Oil
Maximum Natural Gas Flow	200Nm³/h
Maximum Fuel Oil Flow	200kg/h
Melting Rate	≥3T/h
Natural Gas Heating Value	＞8500kcal/m³
Heavy Oil Heating Value	＞11000kcal/kg
Melting Condition	Aluminum Ingot to 710℃

Source: Operating parameters from the PDF.

PLC Control and Safety Configuration

The regenerative burner system uses PLC automatic control for burner load adjustment, switching operation, temperature monitoring, and safety protection. Flame detection and temperature measurement devices are integrated for combustion status monitoring.

Control Parameters

Item	Specification
PLC Control System	S7-200SMART
Air-Fuel Ratio Range	1.05-1.15
Flame Detection	Ion Flame Detector + UV Detector
Temperature Measurement	K-Type Thermocouple
Main Exhaust Temperature	≤250℃

Source: Control system parameters from the PDF.

Applications

The Regenerative Burner System is suitable for:

Aluminum Melting Furnace
Aluminum Alloy Melting Line
Aluminum Casting Plant
Non-Ferrous Metal Furnace Applications

With dual fuel capability, regenerative heat recovery structure, and PLC-based control, this system provides a technical solution for combustion management and thermal control in high-temperature industrial furnace applications.
