Regenerative Burner System
>
Dual Fuel Regenerative Burner System for Aluminum Melting Furnace
All Category

Aluminum Melting Furnace

Homogenizing Furnace

Billet Casting Machine

Billet Cutting Machine

Regenerative Burner System

Continuous Casting Machine Parts
Contact Us
Ms. Huang
carly.huang@foxmail.com
86 15813688760
wechat 86 15813688760
Contact Now
  • name
  • name

Dual Fuel Regenerative Burner System for Aluminum Melting Furnace

Brand Name: Bolv
Model Number: 20T
MOQ: 1 set
Price: USD 20,000
Packaging Details: Standard export packaging (carbon box, pallet, film)
Detail Information
Product Description
Detail Information
Place of Origin:
China
Name:
Regenerative Burner System
Fuel:
Heavy Oil, Diesel, Coal Tar, Liquefied Petroleum Gas, Natural Gas
Applicable Furnace Tonnage:
5-60 Tons
Exhaust Gas Temperature:
<150℃
Aluminum Melting Speed:
2-4 Tons/hour
Energy Consumption:
25-65 Kg/ton Of Aluminum
Control:
PLC
Application:
Aluminum Ingot Or/ And Billet Casting, Aluminum Liquid Transfer
Supply Ability:
100 sets/ year
Highlight:

dual fuel regenerative burner system

,

aluminum melting furnace burner

,

regenerative burner system with warranty

Product Description

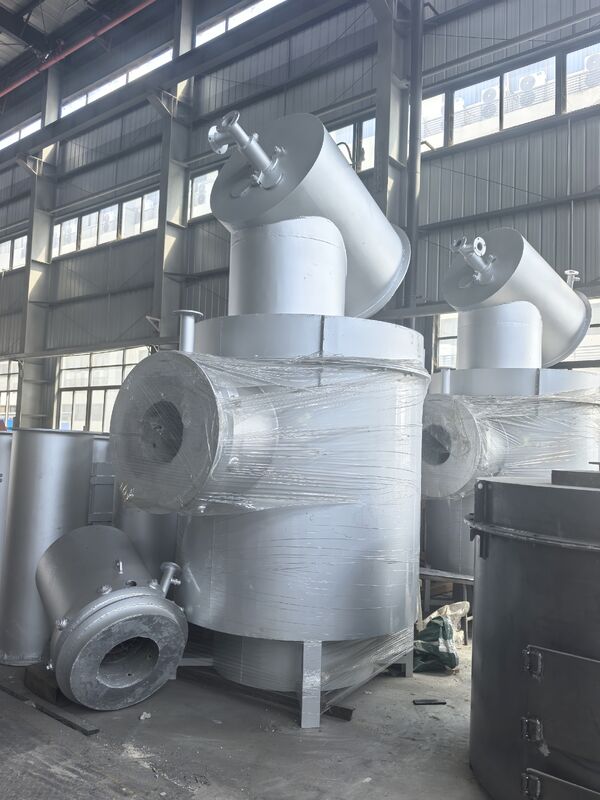

Dual Fuel Regenerative Burner System for Aluminum Melting Furnace
The Dual Fuel Regenerative Burner System is engineered for aluminum melting furnace applications, including aluminum alloy melting, adjustment, and holding processes. This system features an oil and gas dual-purpose regenerative burner structure, utilizing two burners with regenerative heat storage units to recover exhaust heat and preheat combustion air during operation.
Technical Specifications
Regenerative Burner Parameters
Item Specification
Burner Type Dual Purpose Oil and Gas Regenerative Burner
Application Furnace 10T Aluminum Melting Furnace
Burner Quantity 2 Sets
Maximum Thermal Power 2000 kW
Regenerative Heat Storage Unit 2 Sets
Heat Storage Tank Loading Capacity 0.5 T / Tank
Heat Storage Material Φ25/30 High Alumina Balls
Alumina Content of Heat Storage Material ≥75%
Fuel and Operation Parameters
Item Specification
Fuel Type Natural Gas / Heavy Oil
Maximum Natural Gas Flow Rate 200 Nm³/h
Maximum Fuel Oil Flow Rate 200 kg/h
Natural Gas Heating Value Requirement ＞8500 kcal/m³
Heavy Oil Heating Value Requirement ＞11000 kcal/kg
Melting Rate ≥3 T/h
Melting Energy Consumption 65±5 m³/t aluminum
Melting Condition Aluminum ingot melted to 710℃
Combustion Control Parameters
Item Specification
Burner Load Adjustment PLC Automatic Control
Air-Fuel Ratio Control Range 1.05–1.15
Ignition Method Ignition Pilot Burner
Flame Detection Ion Flame Detector + UV Detector
Temperature Measurement K-Type Thermocouple
Main Exhaust Temperature ≤250℃
Main Features
Dual Fuel Capability
The regenerative burner supports both natural gas and heavy oil operation. This dual fuel design provides flexibility for aluminum melting plants with different energy supply conditions.
Regenerative Heat Recovery Design
The system uses two burners working alternately. During operation, one burner performs combustion while the other burner recovers exhaust heat through the regenerative heat storage unit. The recovered heat is used for combustion air preheating.
The regenerative unit uses high alumina heat storage balls with an alumina content of ≥75%, providing the heat storage structure required for regenerative combustion operation.
PLC-Based Automatic Control System
The burner system is equipped with PLC control functions, including:
  • Burner start and stop control
  • Burner load adjustment
  • Regenerative switching control
  • Furnace temperature monitoring
  • Flame detection
  • Alarm and safety interlock protection
Application Areas
  • Aluminum Melting Furnace
  • Aluminum Alloy Melting Line
  • Aluminum Casting Plant
  • Non-Ferrous Metal Melting Industry
  • Industrial High Temperature Furnace Systems
Key Parameters for Product Selection
Parameter Value
Maximum Burner Thermal Power 2000 kW
Melting Rate ≥3 T/h
Air-Fuel Ratio Control Range 1.05–1.15
Alumina Content of Heat Storage Balls ≥75%
