Aluminum Melting Furnace

Brick Structure Aluminum Melting Machine 20T Aluminium Scrap Melting Furnace

All Category

Continuous Casting Machine Parts

Ms. Huang

carly.huang@foxmail.com

86 15813688760

86 15813688760

Contact Now

Brick Structure Aluminum Melting Machine 20T Aluminium Scrap Melting Furnace

Brand Name:	Bolv
Model Number:	20T
MOQ:	1 set
Price:	USD 120,000
Packaging Details:	Standard export packaging (carbon box, pallet, film)
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Name:

Aluminum Melting Machine

Tonnage:

Maximum Scrap Loading:

Burner Type:

Regenerative Burner

Fuel:

Natural Gas 8400kcal/m³

Melting Period Fuelconsumption:

65 M³ /ton Of Aluminum (continuous Working To Melt The Scrap To 710℃

Maximum Natrual Gas Consumption:

Maximum 350N M³/hour (quick Melting Period)

Burner Load Adjustment:

PLC Adjustment

Scrap Type:

Loose Or Baled Aluminum Scrap, UBC, Automobile Engine

Supply Ability:

20 sets/ year

Highlight:

Brick Structure Aluminum Melting Machine

Aluminum Melting Machine 20T

20T Aluminium Scrap Melting Furnace

Product Description

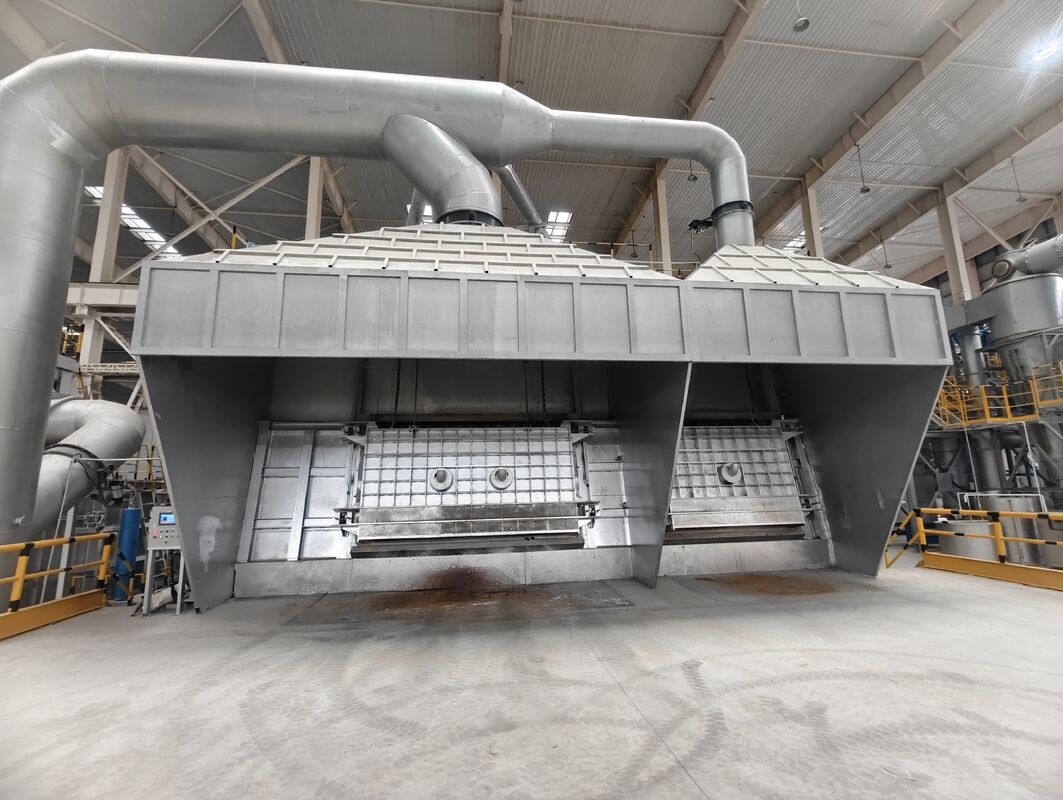

Brick Structure Aluminum Melting Machine 20T Aluminium Scrap Melting Furnace

Brick structure aluminum scrap melting furnace for sale

Supply Scope of Melting Furnace Body

Furnace body steel structure: 1 set
Welding type furnace door: 1 pc
Furnace electric lifting mechanism: 1 set
Furnace lining: bricks: 1 set
Refractory combustion & PLC electric control system: 1 set
Spout block & draining device: 1 set

What are the advantages and disadvantages of using refractory bricks to build a natural gas melting furnace compared to a full fiber casting furnace?

Advantages:

Corundum refractory bricks are resistant to high temperature and aluminum liquid erosion. The furnace lining life can reach 12-18 months under long-term working conditions above 750 ℃, far exceeding the fiber lining life of 3-6 months
Anti erosion, anti cold and hot shock, frequent feeding and intermittent production are not easy to shed or leak aluminum
Strong heat storage capacity, slow temperature drop after shutdown, and lower energy consumption for continuous production
Repairing partial damage only requires individual brick replacement, without the need for overall rebuilding, resulting in lower repair costs

Shortcoming:

The furnace body has a huge self weight, and the foundation of the factory building needs to be reinforced
Long drying cycle (3-5 days)
The initial masonry cost is higher than that of the fiber furnace
The heating rate is slightly slower

Suitable for large tonnage aluminum melting furnaces, high amount of recycled materials, and long-term 24-hour continuous casting production lines.
