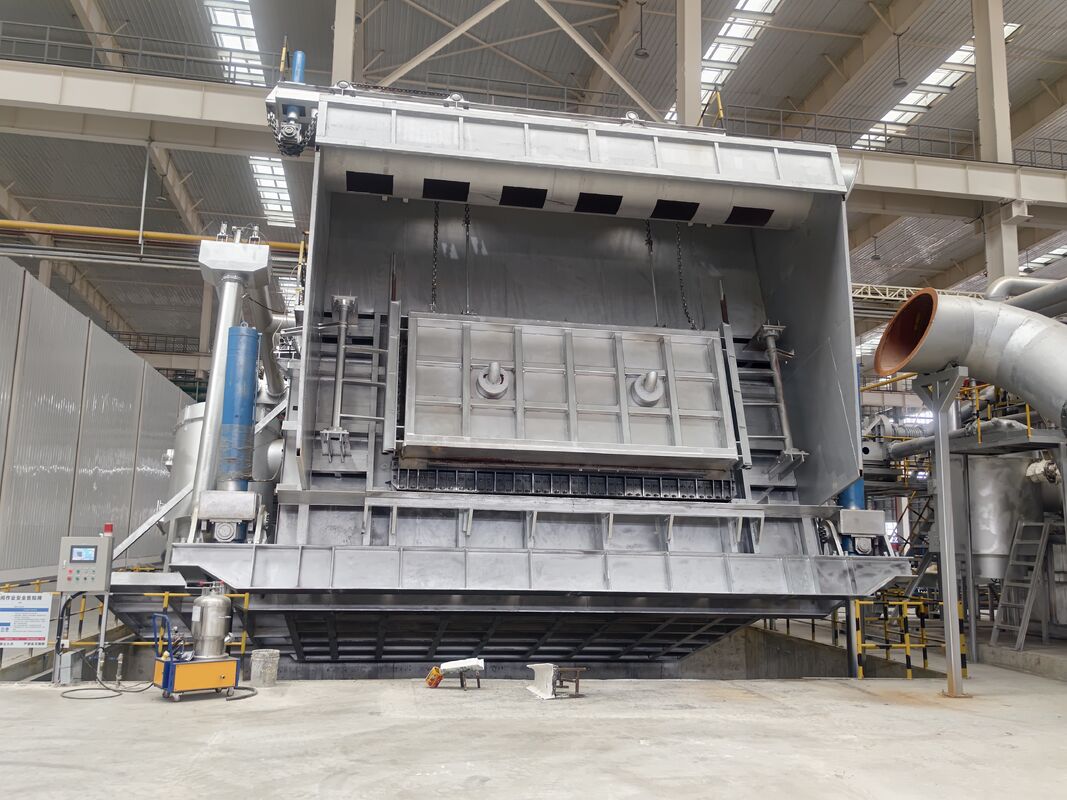

PLC adjustment Tilting Melting Furnace Customized Tonnage Furnace For Aluminium Melting

Brand Name:	Bolv
Model Number:	20T
MOQ:	1 set
Price:	USD 120,000
Packaging Details:	Standard export packaging (carbon box, pallet, film)
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Name:

Tilting Melting Furnace

Scrap Type:

Loose Or Baled Aluminum Scrap, UBC, Automobile Engine

Burner Type:

Regenerative Burner

Fuel:

Natural Gas 8400kcal/m³

Tonnage:

20T

Maximum Natrual Gas Consumption:

Maximum 350N M³/hour (quick Melting Period)

Burner Load Adjustment:

PLC Adjustment

Melting Period Fuelconsumption:

65 M³ /ton Of Aluminum (continuous Working To Melt The Scrap To 710℃

Maximum Scrap Loading:

22T

Supply Ability:

20 sets/ year

Highlight:

PLC adjustment Tilting Melting Furnace

Tilting Melting Furnace Customized Tonnage

Customized Tonnage Furnace For Aluminium Melting

Product Description

Customized tonnage tilting furnace for aluminum scrap melting

Product introduction

This natural gas hydraulic tilting furnace is a practical and reliable device dedicated to melting and holding aluminum and aluminum alloys. It integrates melting, slag removal, alloy blending and molten metal output into one set, perfectly matching various aluminum casting production lines. The sturdy steel shell and multi-layer refractory lining are elaborately manufactured to withstand harsh high-temperature working conditions and reduce maintenance frequency.

Matched with high-efficiency regenerative burners, the furnace makes full use of waste heat from flue gas. It features low fuel consumption, low NOx emission and high thermal efficiency, complying with international environmental standards. The flexible hydraulic tilting mechanism allows operators to adjust the tilting speed and angle freely according to casting demands, ensuring steady flow of molten aluminum and avoiding splashing. The flow control accuracy reaches ±2mm, which greatly stabilizes the follow-up casting quality.

All operating parameters are displayed and adjusted on the intuitive touch screen. The built-in multiple safety protection functions such as over-temperature warning and hydraulic failure protection effectively eliminate potential risks. The furnace door with fine sealing design minimizes heat loss during production. Capable of processing aluminum ingots and various recycled aluminum scraps, this tilting furnace boasts strong adaptability. It runs stably with high production efficiency and simple daily upkeep. We also provide customized services and overseas installation guidance, making it a cost-effective choice for aluminum smelting and casting projects worldwide.

Parameters

Safe distance from the liquid level line to the furnace threshold	100mm
Furnace door sill width	500mm
Depth of the bath	650mm
Scraping angle	30°
Empty angle	22 °
Maximum inclining angle	23 °
Number of furnace doors	1 piece
Furnace door opening size	2500*1200mm
Thickness of stainless steel plate for mixer window	20mm+ stud structure
Number of aluminum outlets	1 piece

FAQ

1.What are the requirements for the civil foundation of installing a smelting furnace in a new workshop?

The equipment needs to be poured with C30 concrete foundation with a thickness of ≥ 200mm, and pre embedded parts and pipeline channels should be reserved; Reserve maintenance space around the furnace body, and lay gas pipelines, power supply lines, circulating water and compressed air pipelines according to standards.

2.What are the parameter requirements for natural gas sources?

It is required that the calorific value of natural gas be ≥ 8400kcal/m ³, the supply pressure be stable at 0.08-0.1MPa, and the main pipeline adopt DN80 specification. It is recommended to install filters and pressure regulating valves at the front end of the pipeline to ensure stable supply of gas.
