25 m/min Adjustable Conveyor for Automatic Aluminum Bar Feeding

Brand Name:	Bolv
MOQ:	1 set
Price:	USD 60,000
Packaging Details:	Standard export packaging (carbon box, pallet, film)

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Aluminum Alloy

Bar Diameter:

Ø80–Ø254 Mm

Maximum Pre-cut Length:

13,000 Mm

Sizing Length:

4500–6000 Mm

Sizing Machine Stroke:

1500 Mm

Length Accuracy:

±2 Mm

Conveyor Speed:

25 M/min, Adjustable

Main Saw Motor:

45 KW

Total Line Power:

90 KW

Saw Blade:

Φ900 × Φ50 × 72T

Saw Blade Speed:

1400 Rpm

Control System:

Mitsubishi PLC + Weinview HMI

Operation Mode:

Manual / Automatic

Supply Ability:

60 sets/ year

Highlight:

adjustable aluminum bar conveyor

25 m/min billet feeding machine

automatic conveyor for billet cutting

Product Description

25 m/min Adjustable Conveyor for Automatic Aluminum Bar Feeding

Product Overview

The automatic aluminum bar feeding system is an integrated component of the aluminum billet cutting line. This system efficiently transfers long aluminum alloy bars from the loading section to the main sawing machine, seamlessly connecting the loading, cutting, sizing, and discharge processes.

Specification	Value
Roller Conveyor Speed	25 m/min (adjustable)
Aluminum Bar Diameter Range	Ø 80 to Ø 254 mm
Maximum Pre-cut Bar Length	13,000 mm

Automatic Aluminum Bar Feeding

Loading and Alignment

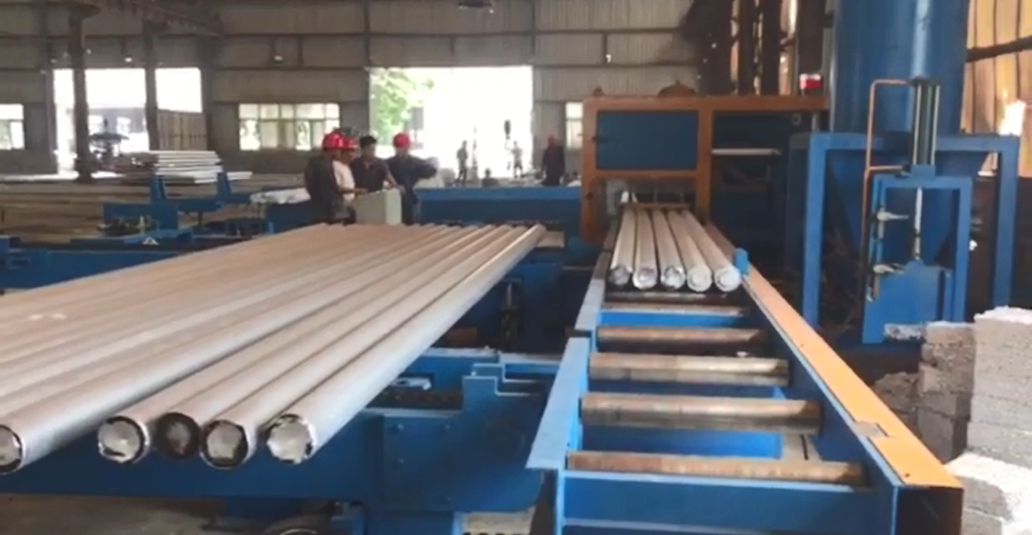

The production line begins with a buffer and alignment table where a crane places long aluminum bars onto the preparation area. The multi-bar loading mechanism then transfers the bars onto the feeding roller conveyor, designed for lifting, lowering, and horizontal transfer operations.

Loading platform length: 6.5 m
Infeed rack dimensions: 12,000 × 710 mm (inside width × 800 mm)
Construction: 20# hot-rolled channel steel
Drive mechanism: Hydraulic motor-powered chain and roller conveying system

Adjustable Conveyor Speed

The conveyor operates at a documented speed of 25 m/min, with adjustment capability as specified in the equipment documentation. This provides precise control over the conveying parameters between loading and sawing sections.

Complete Production Sequence: Loading → Conveying → Head Cutting → Sizing → Discharge

Integration with Aluminum Billet Saw

Main Sawing Section

After the feeding process, aluminum bars enter the horizontal circular saw for head cutting operations.

Component	Specification
Main Saw Motor	45 kW
Total Line Power	90 kW
Saw Blade	Ø 900 mm
Blade Speed	1400 rpm
Sawing Capacity	Five Ø120 mm bars simultaneously
Cycle Time	≤ 60 seconds per five Ø120 × 6000 mm bars

Control and Downstream Processing

The feeding and conveying processes are fully integrated into the line's PLC and HMI control system. The equipment supports both manual and automatic operation modes, featuring comprehensive fault alarms and automatic interlock protection for operational safety.

After the sawing process, bars proceed to the sizing section with the following specifications:

Sizing range: 4500 - 6000 mm
Length accuracy: ± 2 mm
