Automatic Aluminum Bar Cut-to-Length Machine

Brand Name:	Bolv
MOQ:	1 set
Price:	USD 60,000
Packaging Details:	Standard export packaging (carbon box, pallet, film)

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Aluminum Alloy

Bar Diameter:

Ø80–Ø254 Mm

Maximum Pre-cut Length:

13,000 Mm

Sizing Length:

4500–6000 Mm

Sizing Machine Stroke:

1500 Mm

Length Accuracy:

±2 Mm

Conveyor Speed:

25 M/min, Adjustable

Main Saw Motor:

45 KW

Total Line Power:

90 KW

Saw Blade:

Φ900 × Φ50 × 72T

Saw Blade Speed:

1400 Rpm

Control System:

Mitsubishi PLC + Weinview HMI

Operation Mode:

Manual / Automatic

Supply Ability:

60 sets/ year

Highlight:

Automatic aluminum bar cutter

Billet cutting machine with warranty

Cut-to-length aluminum bar machine

Product Description

Automatic Aluminum Bar Cut-to-Length Machine

Product Overview

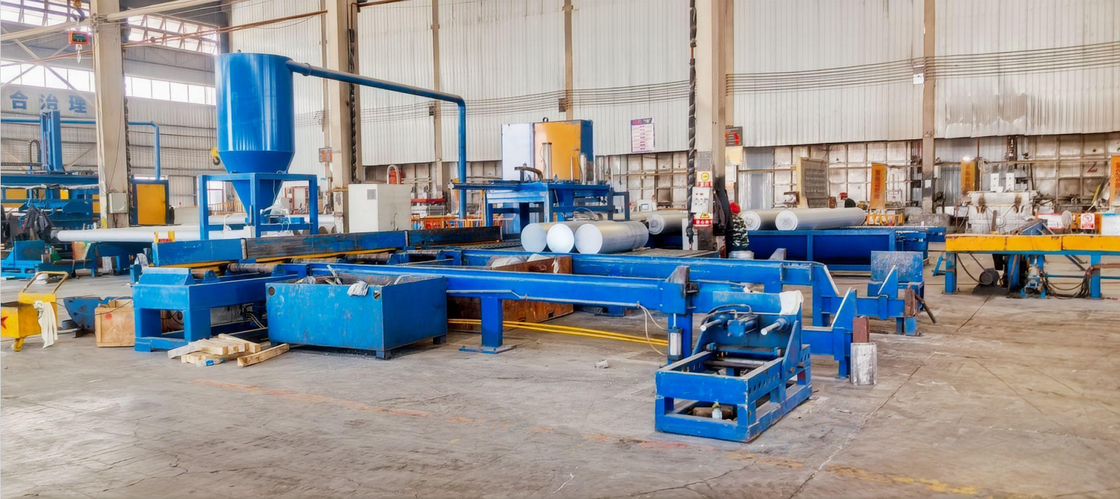

The automatic aluminum bar cut-to-length machine is a precision sizing unit integrated into aluminum bar sawing lines. This equipment processes aluminum alloy bars to specified lengths following initial head-cutting operations.

Key Specifications	Values
Sizing Range	4500–6000 mm
Effective Stroke	1500 mm
Length Accuracy	±2 mm
Bar Diameter Range	Ø80 to Ø254 mm

Equipment Configuration

Complete production line includes:

Buffering and alignment table
Multi-bar loading and unloading machine
Feeding conveyor
Long-bar gang saw
Discharge mechanism
Aluminum chip collection system
Storage rack
Hydraulic system
Electrical control system

Maximum pre-cut bar length: 13,000 mm

Roller conveyor speed: 25 m/min (adjustable)

Sawing & Cutting Parameters

Parameter	Specification
Saw Configuration	Horizontal circular saw
Blade Speed	1400 rpm
Main Saw Motor	45 kW
Total Line Power	90 kW
Saw Blade Specification	Φ900 * Φ50 * 72T
Cut Surface Roughness	≤30 μm
Kerf Width	Saw blade thickness + 1 mm

Discharge & Material Handling

Discharge Rack: 7500 × 710 mm (inside width) × 800 mm

Processed aluminum bars transfer through discharge rack to storage platform. Cut heads and tails discharge into dedicated collection bins, while aluminum chips are collected separately via fan-based chip collection system.

Control System

PLC: Mitsubishi

HMI: 7-inch Weinview

Control system supports both manual and automatic operation modes, featuring comprehensive fault alarm systems and automatic interlock protection functions for operational safety and efficiency.
