20 Ton Industrial Gas Fired Regenerative Aluminum Tilting Melting Furnace

Brand Name:	Bolv
Model Number:	20T
MOQ:	1 set
Price:	USD 120,000
Packaging Details:	Standard export packaging (carbon box, pallet, film)
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Name:

Tilting Melting Furnace

Scrap Type:

Loose Or Baled Aluminum Scrap, UBC, Automobile Engine

Burner Type:

Regenerative Burner

Fuel:

Natural Gas 8400kcal/m³

Tonnage:

Maximum Natrual Gas Consumption:

Maximum 350N M³/hour (quick Melting Period)

Burner Load Adjustment:

PLC Adjustment

Melting Period Fuelconsumption:

65 M³ /ton Of Aluminum (continuous Working To Melt The Scrap To 710℃

Maximum Scrap Loading:

Supply Ability:

20 sets/ year

Highlight:

20 ton aluminum melting furnace

gas fired regenerative furnace

industrial tilting melting furnace

Product Description

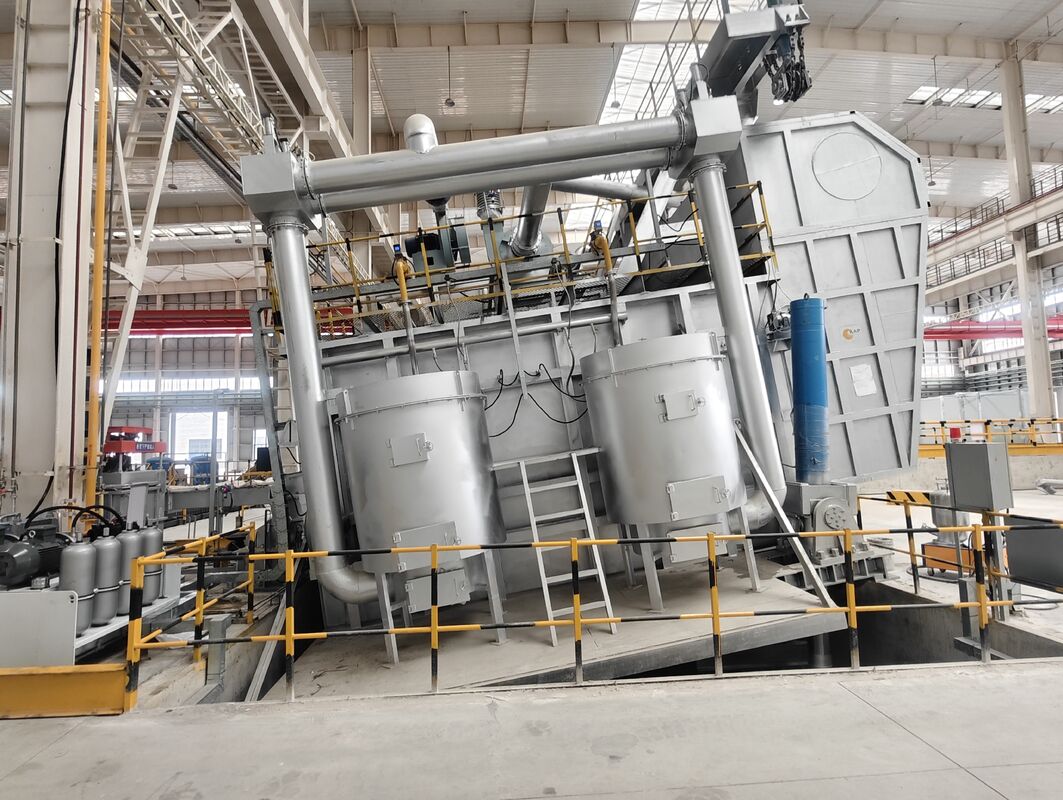

20 Ton Industrial Gas Fired Regenerative Aluminum Tilting Melting Furnace

Product Overview

This natural gas hydraulic tilting furnace is a practical and reliable device dedicated to melting and holding aluminum and aluminum alloys. It integrates melting, slag removal, alloy blending and molten metal output into one system, perfectly matching various aluminum casting production lines.

Key Features

Sturdy steel shell and multi-layer refractory lining designed to withstand harsh high-temperature conditions
High-efficiency regenerative burners that utilize waste heat from flue gas
Low fuel consumption, low NOx emission, and high thermal efficiency
Flexible hydraulic tilting mechanism with adjustable speed and angle
Precise flow control accuracy of ±2mm for stable casting quality
Intuitive touch screen interface for parameter display and adjustment
Comprehensive safety protection functions including over-temperature warning
Capable of processing aluminum ingots and various recycled aluminum scraps

Technical Specifications

Regenerative burner quantity	2
Natural gas fired	8500 Kcal/Nm³
High melting rate	≥4 t/h
Energy-efficient melting	≤65 Nm³/t-Al
Waste heat recovery	Heat recovery efficiency >85%
Hydraulic tilting	2 tilting cylinders
Molten aluminum level control	≤±2 mm
PLC furnace control	Famous brand
Furnace temperature control	K-type thermocouple + PID
Flame detection / safety interlock	UV flame detection
Automatic fault protection	PLC alarm/shutdown
Refractory lining service life	>3,000 cycles
Flue gas exhaust control	Induced draft fan + VFD

Frequently Asked Questions

What are the requirements for the civil foundation of installing a smelting furnace in a new workshop?

The equipment requires a C30 concrete foundation with a thickness of ≥200mm, with pre-embedded parts and pipeline channels reserved. Maintenance space around the furnace body must be provided, and gas pipelines, power supply lines, circulating water, and compressed air pipelines should be laid according to standards.

What are the parameter requirements for natural gas sources?

Natural gas must have a calorific value of ≥8400kcal/m³, with stable supply pressure at 0.08-0.1MPa. The main pipeline should use DN80 specification. Installation of filters and pressure regulating valves at the front end of the pipeline is recommended to ensure stable gas supply.
