20t Gas Homogenizing Furnae, 20t Cooling Chamber and 20t Composite Charging Car

Brand Name: Bolv
Model Number: 20T
MOQ: 1 set
Price: USD 120,000
Packaging Details: Standard export packaging (carbon box, pallet, film)
Payment Terms: T/T,L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Tonnage:
20T
Furnace Control Mode:
Automatic
Power:
380V 3-phase 50hz
Control Power:
220V Single Phase 50hz
Fuel:
Natural Gas
Heating Value:
8400 Kilocalorie / M3
Supply Ability:
20 sets/ year
Product Description

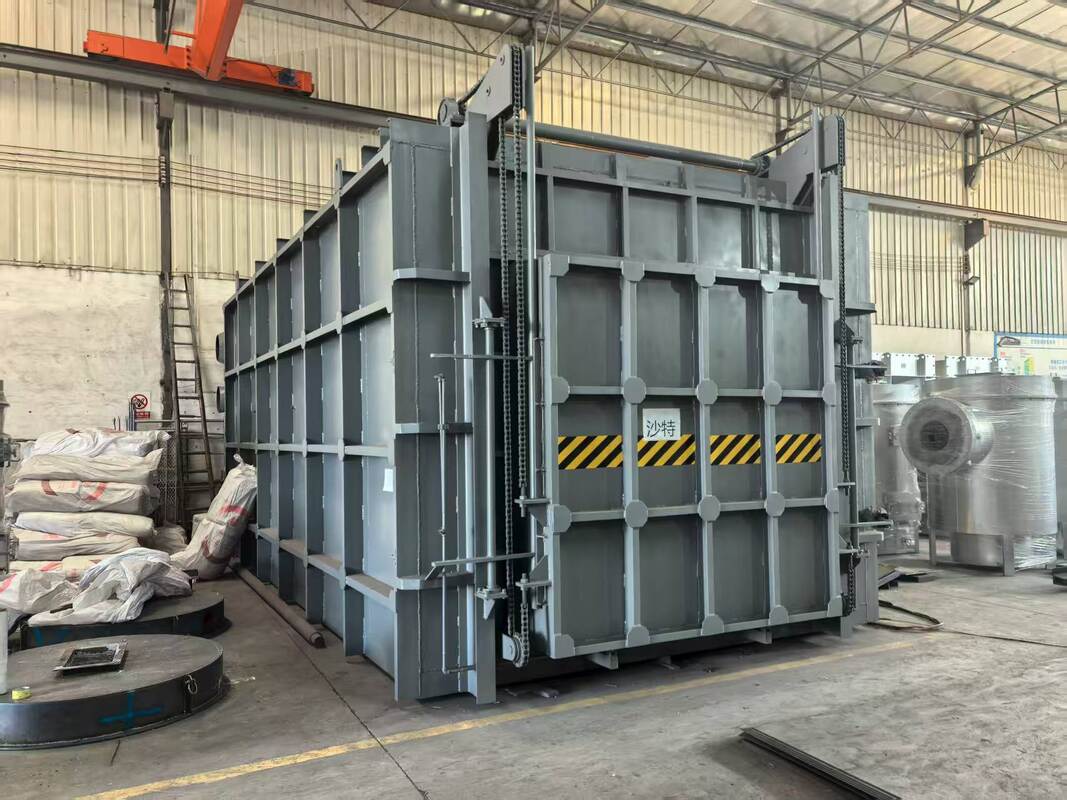

20t Gas Homogenizing Furnae, 20t Cooling Chamber and 20t Composite Charging Car


Product introduction

The homogenizing furnace set consists of one 20t gas homogenizing furnace, one 20t cooling

Capacity 20t
Output Approx. 60t / day
Length of furnace inner side ≥6700mm
Height of furnace chamber 2200mm

Height (From ground to material) 1155mm
Width of Door mouth (when opened) 1990mm
Maximum width of loading material 1620mm
Maximum height of loading material 1500mm
Maximum length of loading material 6500mm
Limited temperature for operation 620℃
Number of control zone 3
Number of Circulation air blower 3
Air blower air rate ≥20 cubic metre / second
Motor power 26 / 32kw (double speed)
Number of burner in each zone 2
Total number of burner 6
Furnace overall power 2.5×106 kw / h
Furnace temperature control precision ±5℃
From material loading to homogenizing temperature 4 to 6 hours
Energy consumption Natural Gas ≤30m3/t Al
