Aluminum Billet Hot Top Casting Mold and Wire Rope Winch Casting Machine

Brand Name: Bolv
Model Number: 20T
MOQ: 1 set
Price: USD 360,000
Packaging Details: Standard export packaging (carbon box, pallet, film)
Detail Information
Product Description
Detail Information
Place of Origin:
China
Name:
Billet Casting Table
Lifting Speed:
30 To 800mm/min Infinitely Adjustable, With Manual Descent Device
Working Conditions:
Intermittent Start-up
Application:
Aluminum Ingot Or/ And Billet Casting, Aluminum Liquid Transfer
Rated Lifting Capacity:
5-60 Tons
Lifting Height:
4 To 12 Meters
Casting Size Range:
4-26 Inches
Supply Ability:
30 sets/ year
Highlight:

aluminum billet casting mold

,

wire rope winch casting machine

,

billet casting machine with warranty

Product Description

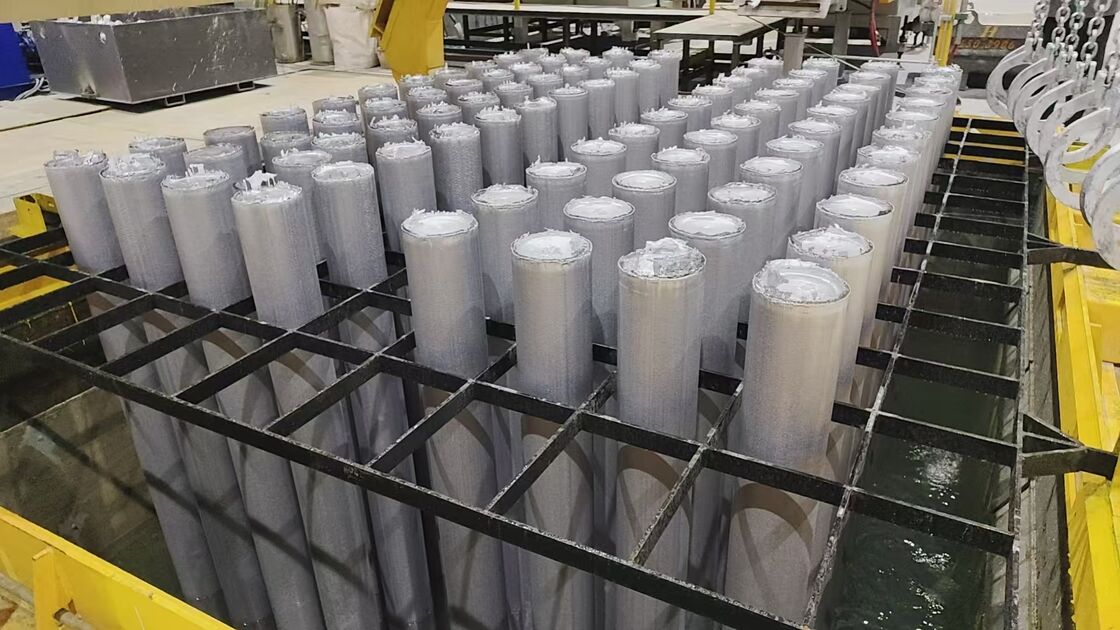

Aluminum Billet Hot Top Casting Mold and Wire Rope Winch Casting Machine

Complete casting table system designed for aluminum billet production with hot top casting technology and wire rope winch operation.

Scope of Supply
Item No. Component Description Quantity
1.1 Crystallizer (including guide tube, graphite ring, pressure ring, sealing ring) 1 set
1.2 Cooling water distribution system (water tank) 1 set
1.3 Refractory materials for diversion groove and diversion disc 1 set
1.4 Ingot system (including ingot holder, ingot head, floating plate) 1 set
1.5 Connection components and anti roll frame 1 set
1.6 Aluminum rod special lifting equipment 1 set
1.7 Casting wellhead frame 1 set
1.8 Casting bottom drive 1 set
1.9 Hydraulic tilting arm 1 set
1.10 Oil cylinder 1 set
1.11 Soft connector 1 set

All components supplied as complete sets ready for installation and operation.
