Wind and Water Mist Cooling Chamber of Aluminum Billet Homogenizing Furnace

Brand Name: Bolv
MOQ: 1 set
Price: USD 150,000
Packaging Details: Standard export packaging (carbon box, pallet, film)
Detail Information
Product Description
Detail Information
Place of Origin:
China
Name:
Cooling Chamber
Boosting Water Pump:
5.5KWx1 Unit
Water Filter:
DN65x1
Electromagnetic Valve:
DN40x1
Cooling Water Volume:
12-20m ³/h
Spray Nozzle:
54 Copper Adjustable 4-point Nozzles
Supply Ability:
15 sets/ year
Highlight:

aluminum billet homogenizing furnace

,

wind cooling homogenizing furnace

,

water mist cooling chamber

Product Description

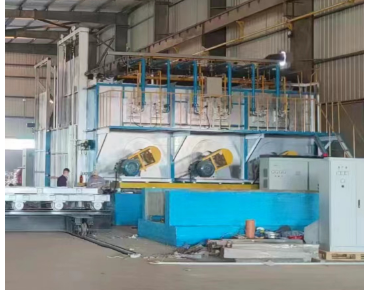

Wind and Water Mist Cooling Chamber of Aluminum Billet Homogenizing Furnace
Product Introduction

The cooling chamber is assembled with multiple core functional components, including a protective outer shell, cooling ventilation fans, atomizing spray pipelines and top exhaust assemblies, forming a complete and efficient cooling processing unit.

The air cooling module is configured with two axial flow fans mounted on both sides of the chamber body. During operation, the dual-side fans deliver continuous airflow into the cooling chamber, and the hot air is exhausted out of the furnace through the top exhaust duct. This circulating air convection mode realizes fast and uniform cooling of aluminum billets.

The fan impellers are made of Q235A carbon steel with anti-corrosion coating treated on the outer surface, ensuring wear resistance and long service life in harsh working environments.

Extended Features
  • Intelligent homogenizing furnace supports segmented heating and precise constant temperature control
  • Pre-set fully automatic cooling process curves for optimized performance
  • Adaptable to aluminum rods with different diameters and alloy specifications through one-click parameter switching
  • Superior thermal insulation and airtight structures effectively reduce heat dissipation loss
  • Outstanding energy-saving effects with precisely controllable heat treatment cycles
  • Highly suitable for large-scale, continuous and stable batch production of aluminum materials
