15T Semi Castable Wall and Brick Dome Aluminum Reverberatory Furnace Melting Furnace

Brand Name: Bolv
Model Number: 20T
MOQ: 1 set
Price: USD 120,000
Packaging Details: Standard export packaging (carbon box, pallet, film)
Payment Terms: T/T,L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Name:
Aluminum Melting Machine
Tonnage:
20T
Maximum Scrap Loading:
22T
Burner Type:
Regenerative Burner
Fuel:
Natural Gas 8400kcal/m³
Melting Period Fuelconsumption:
65 M³ /ton Of Aluminum (continuous Working To Melt The Scrap To 710℃
Maximum Natrual Gas Consumption:
Maximum 350N M³/hour (quick Melting Period)
Burner Load Adjustment:
PLC Adjustment
Scrap Type:
Loose Or Baled Aluminum Scrap, UBC, Automobile Engine
Supply Ability:
20 sets/ year
Highlight:

15T aluminum melting furnace

,

semi castable wall reverberatory furnace

,

brick dome aluminum melting furnace

Product Description

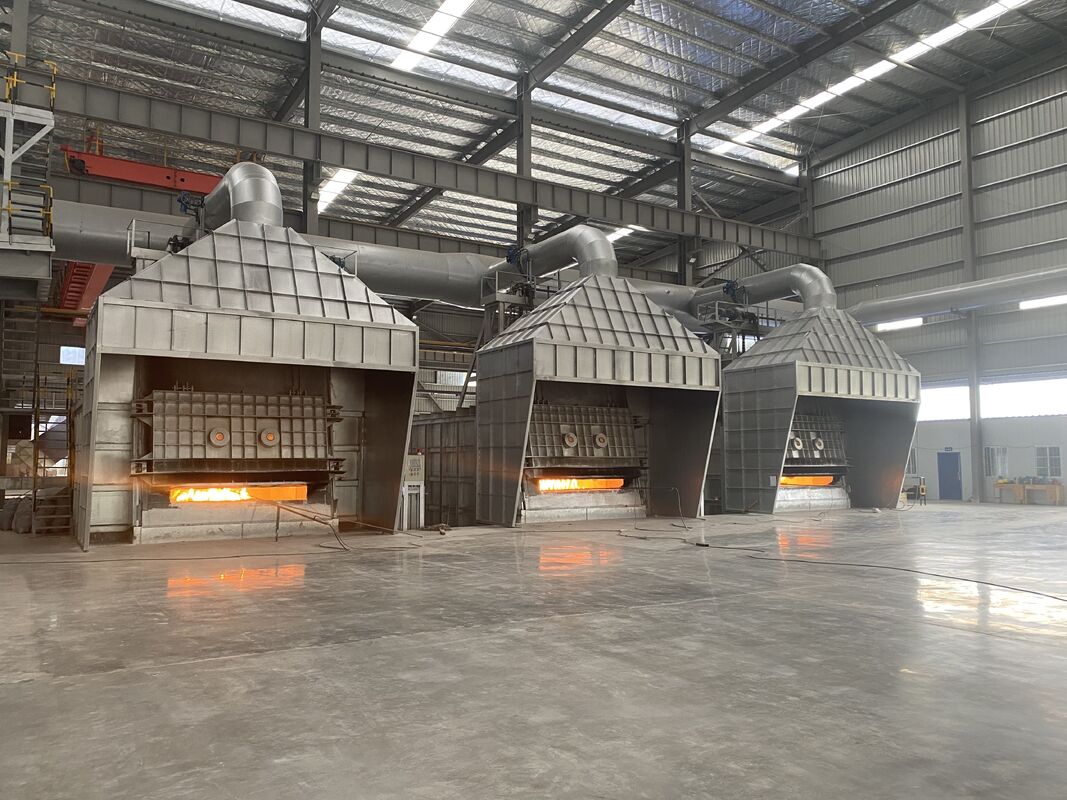

15T Semi Castable Wall and Brick Dome Aluminum Reverberatory Furnace Melting Furnace
High-performance 15-ton aluminum reverberatory melting furnace featuring semi-castable wall construction and brick dome design for efficient industrial metal processing.
Technical Specifications
Specification Details
Furnace Type Fixed rectangular furnace
Liner Structure Half cast inner lining, brick dome
Capacity 15T
Furnace Size 5500mm × 4500mm
Furnace Wall Steel Thickness 140+6mm
Furnace Wall Lining Thickness 600mm
Average Depth of Aluminum Liquid 650mm
Furnace Mouth Form Inclined furnace mouth
Furnace Mouth Size 2000mm × 1400mm
Furnace Sill Width 500mm
Furnace Mouth Stand Width 450mm
Furnace Door Lifting Method With motor and balanced counterweight
Key Features
  • Semi-castable wall construction for enhanced durability
  • Brick dome design for optimal heat retention
  • Motorized furnace door with balanced counterweight system
  • Inclined furnace mouth for efficient material handling
  • Robust steel construction with substantial lining thickness
