Oil Air Slip Crystalizer for Aluminum Billet Casting

Brand Name: Boqiang
MOQ: 1 piece
Price: USD 50
Packaging Details: Standard export packaging (carbon box, pallet, film)
Detail Information
Product Description
Detail Information
Place of Origin:
China
Name:
Continuous Casting Machine Parts
Casting Diameter:
3.5-15 Inches
Capacity:
1-120 Pieces
Structure:
Double Row Hole Design
Application:
Automobiles, Electronic Equipment, 3C Digital And Other Industries
Supply Ability:
600,000 pieces/ year
Highlight:

Oil air slip crystalizer for aluminum

,

Billet casting crystalizer machine

,

Continuous casting machine parts

Product Description

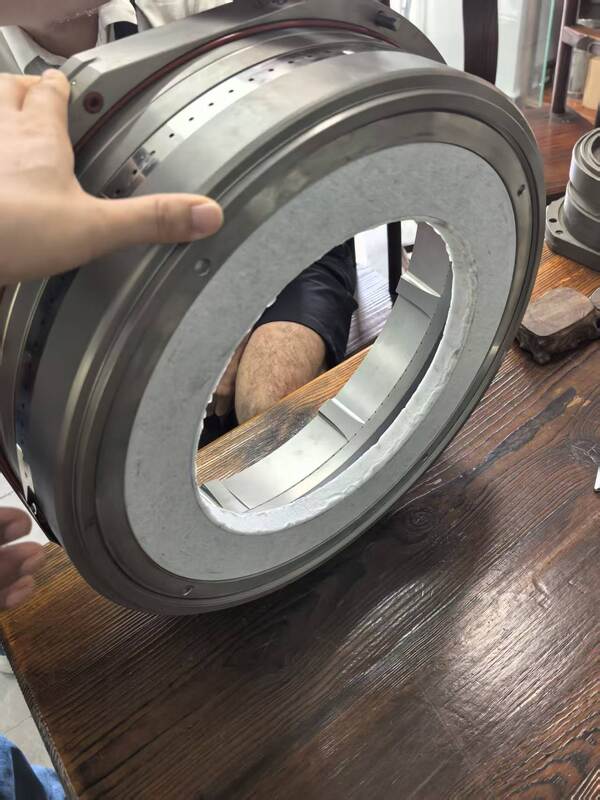

Oil Air Slip Crystalizer for Aluminum Billet Casting
Product Overview

The oil-air slip crystallizer is a core component for modern hot-top semi-continuous aluminum billet casting. This advanced system features independent oil and air channels that deliver precisely metered lubricant and compressed air through porous graphite rings.

This creates a stable oil-air film between molten aluminum and the inner mould wall, effectively isolating direct metal-graphite contact, lowering primary cooling intensity, and reducing friction during the casting process.

Operating Principle

During operation, molten aluminum flows into the crystallizer cavity where it forms a thin initial solid shell under primary cooling. As the billet descends, circulating cooling water performs secondary intensive cooling to ensure complete solidification.

  • Independent oil and air channels for precise lubrication control
  • Porous graphite rings distribute oil-air mixture evenly
  • Stable film formation between aluminum and mould wall
  • Two-stage cooling process (primary and secondary)
Key Benefits
  • Produces billets with ultra-smooth surfaces
  • Creates thin segregation layers and uniform grain structure
  • Significantly reduces oil consumption
  • Minimizes smoke emissions during operation
  • Adaptable to multiple aluminum-alloy grades and billet diameters
  • Compatible with automatic casting lines
  • Stabilizes casting conditions and improves production yield
  • Extends service life of graphite accessories
