Hydraulic Billet Casting Machine Oil Cylinder Billet Continuous Casting Machine

Brand Name: Bolv
Model Number: 20T
MOQ: 1 set
Price: USD 360,000
Packaging Details: Standard export packaging (carbon box, pallet, film)
Detail Information
Product Description
Detail Information
Place of Origin:
China
Name:
Billet Casting Machine
Control:
PLC
Rated Lifting Capacity:
5-60 Tons
Lifting Height:
4 To 12 Meters
Application:
Aluminum Ingot Or/ And Billet Casting, Aluminum Liquid Transfer
Casting Shape:
Round, Rectangular
Casting Size Range:
4-26 Inches
Supply Ability:
30 sets/ year
Highlight:

Hydraulic Billet Casting Machine

,

Oil Cylinder Billet Continuous Casting Machine

,

Hydraulic Billet Continuous Casting Machine

Product Description

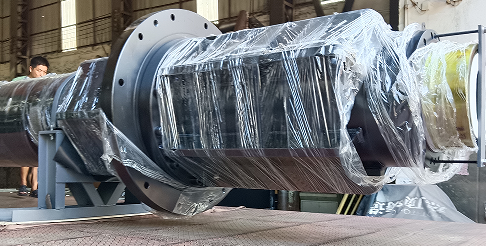

Hydraulic Billet Casting Machine Oil Cylinder Billet Continuous Casting Machine
Product Overview

Aluminum billet oil cylinder hydraulic billet casting machine designed for stable, high-quality aluminum billet production with advanced hydraulic inner guide technology.

Key Features
  • Primarily used for casting aluminum billets with exceptional process stability
  • Internal guide casting design encloses all moving components within the cylinder, ensuring stable product quality and minimal maintenance requirements
  • Comparable running costs to traditional casting machines with superior product quality for high-end production
  • Energy-efficient single-acting inner guide cylinder operation without power source during casting
  • Intelligent control system enables high automation and reduced personnel input
Technical Parameters
Parameter Value
Number of Strand 48
Cast Speed 105mm/min
Cast Length 4000
Cast Time 60min
Metal Flow Rate 145kg/min
Billet Head Scrap Length 150mm
Billet Butt Scrap Length 150mm
Mold Table Refractory Module Life 12 months
Thimble Life 3 years
Graphite Ring Life 500 times
Gaskets/O-Ring Life 6 months
Transportation Line Refractory Material Service Life 12 months
Frequently Asked Questions
What are the core advantages of vertical hydraulic inner guide casting machine?

It features stable vertical operation, precise inner guide positioning, uniform metal liquid filling, low vibration, minimal casting defects, and high finished product yield.

How does the hydraulic inner guide structure improve casting quality?

The built-in inner guide design ensures straight billet forming, effectively prevents bending and deformation, controls casting size tolerance accurately, and improves surface finish.

Is this casting machine easy to maintain and operate?

Adopts integrated hydraulic control with simple operation procedures, standardized lubrication, and wearing parts replacement design, resulting in low daily maintenance costs and long service life.
