Hot Top Aluminium Billet Casting Machine Precision Machining Billet Caster Machine

Brand Name: Bolv
Model Number: 20T
MOQ: 1 set
Price: USD 360,000
Packaging Details: Standard export packaging (carbon box, pallet, film)
Detail Information
Product Description
Detail Information
Place of Origin:
China
Name:
Hot Top Aluminium Billet Casting Machine
Crystallizer Structure:
Double Water Curtain Type
Main Material Of Crystallizer:
6061 Forged Aluminum Alloy
Guide Wheel Bearing Model:
6210
Guide Wheel Groove Diameter:
Φ20mm
Ingot Pulling Structure:
Automatic Centering Type
Table Thickness:
Top 25mm / Bottom 14mm
Supply Ability:
30 sets/ year
Highlight:

Hot Top Aluminium Billet Casting Machine

,

Precision Machining Billet Caster Machine

,

Hot Top Billet Caster Machine

Product Description
Hot Top Aluminium Billet Casting Machine Precision Machining Billet Caster Machine
Product Overview

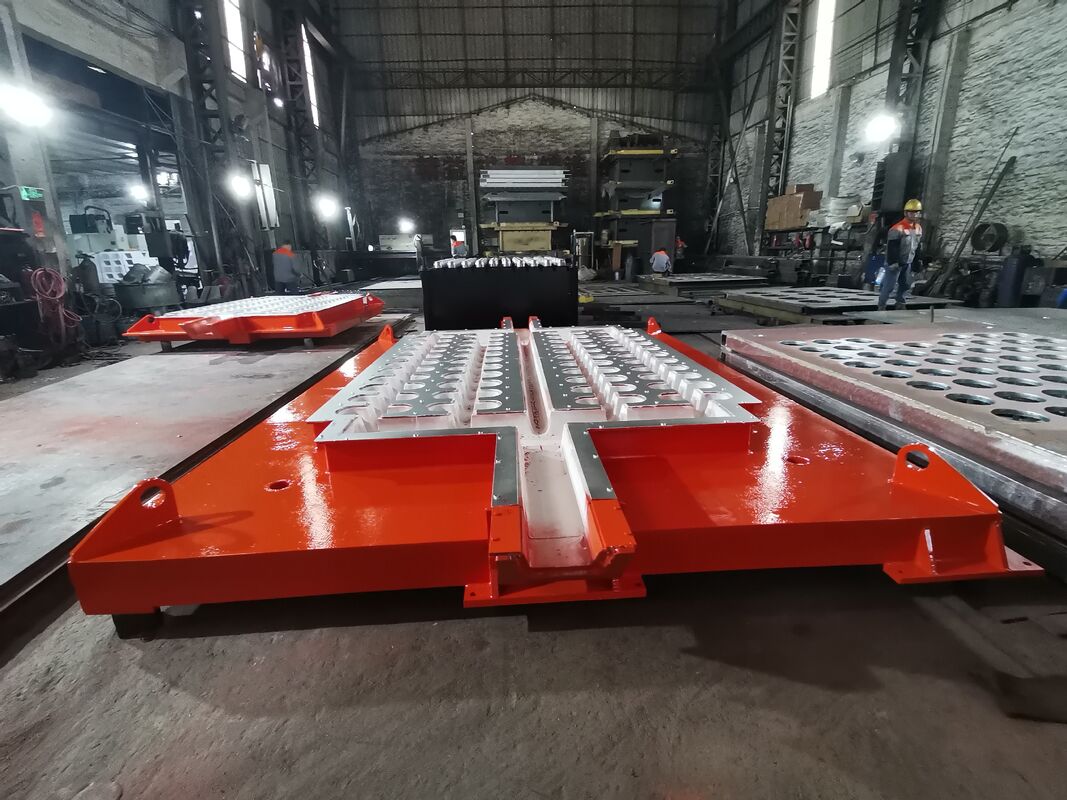

This steel wire rope casting water tray serves as a core component matched with aluminum rod casting equipment, functioning primarily as the cooling and forming carrier for molten aluminum during casting procedures.
Technical Features
  • Optimized double-piece water curtain crystallizer design for superior cooling performance
  • Forged from 6061 aluminum billets and processed via CNC precision machining
  • Integral welded structure with hot galvanizing and stress relief annealing treatment
  • Complete cooling water distribution system with diversion pipes, graphite rings, and sealing assemblies
  • Built-in ingot pulling mechanism with self-centering design for smooth demolding
  • Heavy-duty steel wire rope guide wheels with double bearing structure
  • Hydraulic tilting arms and oil cylinders for flexible flipping and positioning
  • High-temperature resistant materials for all refractory accessories and sealing parts
Performance Specifications
Feature Benefit
Double-piece water curtain crystallizer Outstanding structural strength and uniform cooling performance
Hot galvanizing & stress relief annealing Effective resistance to deformation under high-temperature conditions
Complete cooling water system Stable water flow and reliable sealing to prevent leakage
Self-centering ingot pulling mechanism Smooth demolding of aluminum rods
Heavy-duty construction Stable operation in demanding casting environments
Application & Compatibility
This durable, high-precision casting water tray is perfectly compatible with 10-ton aluminum casting lines, guaranteeing qualified forming quality of aluminum ingots and adapting to harsh casting environments with long-term reliability.
