Energy Efficient Cooling Chamber Aluminum Billet Homogenization Furnace Cooler Chamber

Brand Name:	Bolv
MOQ:	1 set
Price:	USD 150,000
Packaging Details:	Standard export packaging (carbon box, pallet, film)

Detail Information

Product Description

Detail Information

Place of Origin:

China

Name:

Cooling Chamber

Boosting Water Pump:

5.5KWx1 Unit

Water Filter:

DN65x1

Electromagnetic Valve:

DN40x1

Cooling Water Volume:

12-20m ³/h

Spray Nozzle:

54 Copper Adjustable 4-point Nozzles

Supply Ability:

15 sets/ year

Highlight:

Energy Efficient Cooling Chamber

Homogenization Furnace Cooling Chamber

Homogenization Furnace Cooler Chamberv

Product Description

Energy Efficient Cooling Chamber Aluminum Billet Homogenization Furnace Cooler Chamber

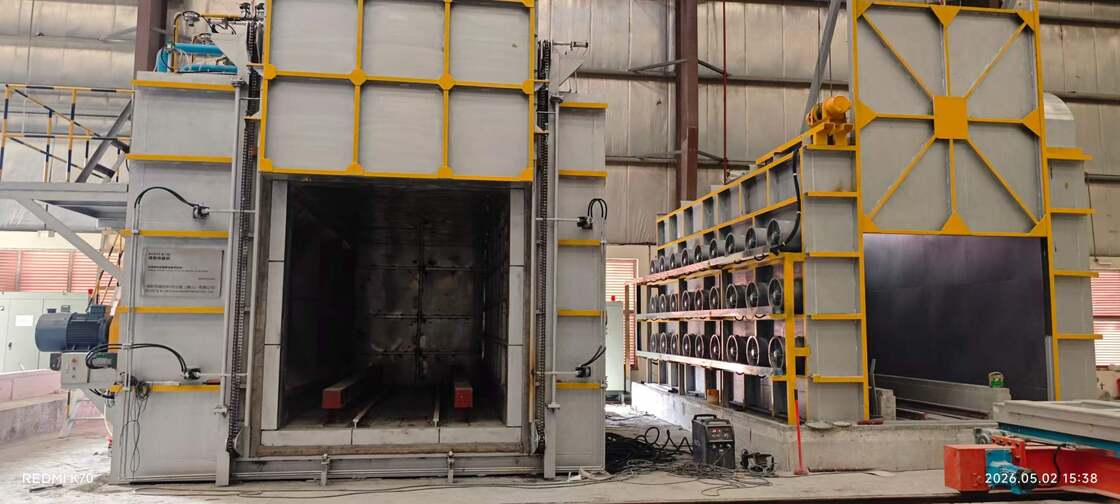

Cooling Chamber of the Aluminum Billet Homogenizing Furnace

The main components of the cooling chamber include the shell, cooling fan, spray pipe, exhaust device, and related control systems.

Product Features

This cooling chamber features three independent cooling systems:

Air Cooling System - Two sets of axial flow fans installed adjacent to the cooling chamber
Water Cooling System - Sprinkler heads with integrated water filtration system
Hybrid System - Combination of water mist and air cooling technologies

System Specifications

Air Cooling System: Two axial flow fans draw air into the cooling chamber from both sides, with exhaust discharged through the top furnace pipe for rapid aluminum bar cooling.

Water Cooling System: Utilizes specialized sprinkler heads with filtration to prevent nozzle clogging. Installation requires attention to drainage angles and includes normally open return valves at low positions to prevent winter icing while achieving rapid cooling.

Material Specification: Fan impeller constructed from Q235A carbon steel with exterior anti-corrosion coating.

What are the efficiency advantages of a fully automatic temperature controlled homogenization furnace in mass production?

Equipped with segmented heating, constant temperature control, and fully automated cooling process curves, this system can easily accommodate aluminum rods of varying diameters and alloy compositions with single-click operation.

Superior insulation and sealing performance minimizes heat loss, resulting in enhanced energy efficiency. The controllable heat treatment cycle for the entire furnace makes it ideal for large-scale continuous and stable production environments.
