3D Trolley Vehicle Composite Shuttle Cart Of The Homogenization Furnace

Brand Name:	Bolv
MOQ:	1 set
Price:	USD 150,000
Packaging Details:	Standard export packaging (carbon box, pallet, film)

Detail Information

Product Description

Detail Information

Place of Origin:

China

Name:

Shuttle Cart

Rated Load Capacity:

30 Tons

Max Loading Length:

6500mm

Trolley Total Length:

7000mm

Lifting Height:

100mm

Travel Speed:

Approx. 7.5 M/min

Main Drive Type:

Hydraulic & Electric Hybrid Drive

Supply Ability:

15 sets/ year

Highlight:

3D Trolley Vehicle

Composite Shuttle Cart

3D Shuttle Cart

Product Description

3D Trolley Vehicle Composite Shuttle Cart Of The Homogenization Furnace

Product Overview

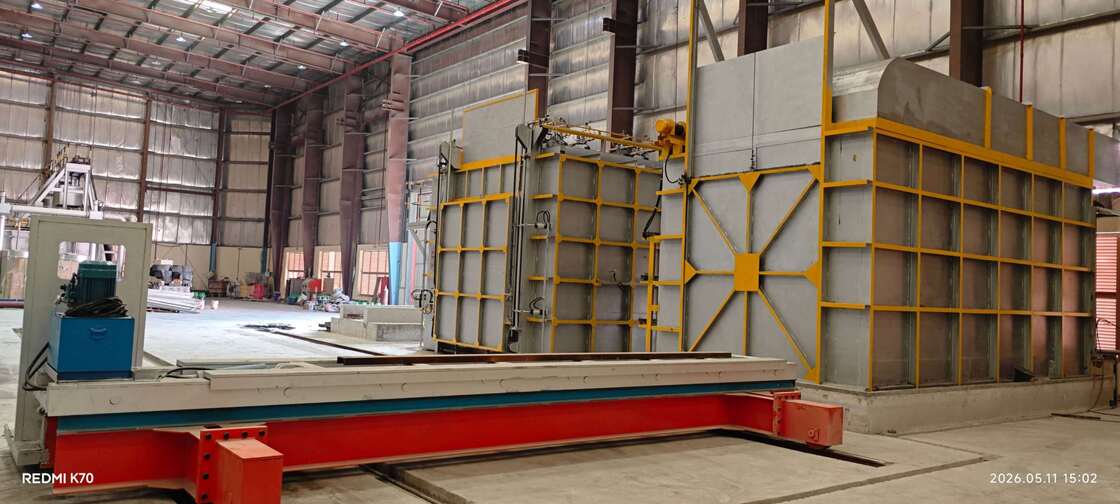

The composite 3D trolley vehicle is designed for the homogenizing furnace system, providing efficient material handling and transportation of aluminum bars between processing stations.

Product Introduction

This specialized trolley system operates between the homogenization chamber, cooling chamber, and material platform, facilitating the movement and transport of aluminum bars throughout the manufacturing process.

Main Frame Construction: The large trolley's primary structure is welded from 40# I-beams, providing robust support and durability for heavy-duty operations.

Wheel Support System: Large wheel supports are fabricated from 25mm steel plate splicing, while the small trolley's main body frame utilizes 20mm steel plate splicing for optimal strength and performance.

System Components

Component Category	Description
Running Big Trolley	Primary transport vehicle with main frame construction
Loading Small Trolley	Secondary transport unit for material handling
Hydraulic Pump Station	Power source for lifting and operational functions
Lifting Device	Vertical movement mechanism for material handling
Driving Device	Primary propulsion system for trolley movement
Reduction Unit & Chain Transmission	Power transmission components for controlled movement
Track System	Guidance and support infrastructure
Anchoring Components	Secure mounting and fixation elements
Power Supply System	Safety sliding contact line or cable reel (determined after comparison)
Control Systems	Material truck control panel and electric control systems
Safety Systems	Ground travel and proximity switches with safety devices
